(1) Screw diameter: 70mm, there is thermometer hole in the barrel .
(2) L:D: 33:1, Material of screw: 38CrMoALA ,
(3) Spinneret components: 2 sets.
(4) Pressure automatic feedback system.
(5) Pressure sensor and pressure gauges: Shanghai Zhaohui.
2. Quenching tank: 1 set
(1) The tank is made by SS 304.
(2) There are double ceramic roller guiders.
3. Five roller stretching unit A: 1 set
(1) Motor power: 7.5kw
(2) The steel structure box with accurately grind gear.
(3) Built-in oil lubrication system.
4. Hot water tank: 1 set
(1) Overall size: 4000×1300×1100 mm
(2) Heating method: electric heating
5. Oiling heating five roller stretching unit B: 1 set
(1) 4 heating roller and working width 1300mm
(2) Standard heater has self-protective and alarm function.
(3) Built-in oil lubrication system.
7. Double layers hot blast stretching oven: 1 set
(1) Working area: 5000mm L×1350mm W.
(2) Frequency control speed of blast capacity. Temperature control range: 0-200 degree.
8. Three roller setting unit C: 1 set
(1) Two cooling roller:φ318×1300×3,standard rotary joint.
(2) Driving motor and reducer: 7.5kw
(3) Built-in oil lubrication system.
9. Spindle winder: 60spindles
(1) Constant tension magnetic disk deviation transmission.
(2) Winding motor: 250w
10. Waster yarn collector
(1) Including pipes and fan, fan power: 7.5kw
11. The installation power: 320kw;
Specification:
| Screw diameter | Φ70mm |
| Raw material | PE | PLY | 8 |
| Capacity | 200Kg/H | Filament shape | profile |
| Screw L:D | 33:1 | Stretching unit | 3 sets |
| Screw material | 38CrMoALA | Winder | 60 spindles |
| Max linear speed | 150m/min | Instillation power | 480Kw |
| Nozzle holes | 280 | Overall size | 43×2.5×2.5m |

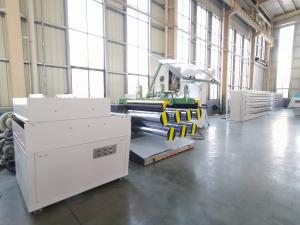

Pictures:
