PE Monofilament Extrusion Machine

PE Monofilament Extrusion Machine For Color Sustainable Fishing Rope 125kgh

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 80mm, Rotation speed of screw: 0～72 rpm.

(2) L:D: 33:1, the screw is suitable for PE chips.

(3) Aautomatic screen changer:1 set

(4) Use the pressure feedback system to adjust the screw speed

(5) Material of barrel heater: far infrared

(6) Round spinneret

2. Quenching tank: 1 set

(1) The tank is made by SS 304.

3. First seven roller stretching unit

(1) Seven pieces variable diameter roller, five rubber rollers.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

4. Hot water tank:1 set

(1) The tank is made by SS 304 with the insulating layer

5. Second roller stretching unit

(1) Seven pieces variable diameter roller, all rollers are coated with hard chrome.

(3) Steel structure box with accurately grind gear makes the rollers run smoothly.

6. Waster yarn collectors: 80KG.cm

7. Spindle winder

(1)inding bobbin as per custome's request.

(3) Tension controlled by inverter.

Parmater:

Pictures:

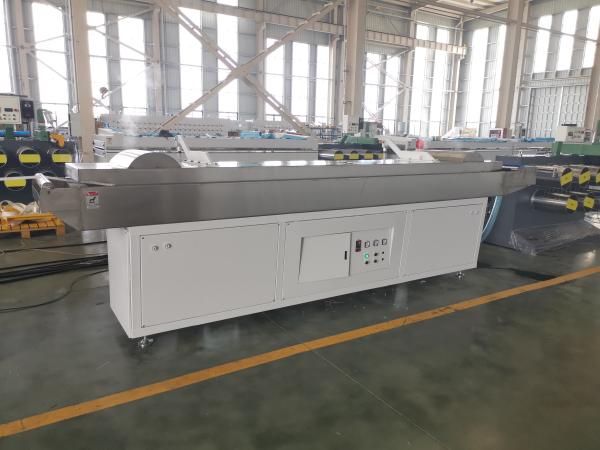

Monofilament Extrusion Machine 125kgh

Monofilament Extrusion Machine PE

PE Monofilament Extrusion Machine Images
